12 Months After-sales Service Underground Tunnel Mining Rock Drilling and Blasting Rig

Model NO. : CYTB1/4

Specification : 9660x1920x2520

Trademark : Jarlo

Origin : China

HS Code : 8430313000

Supply Ability : 1000 Sets/Year

Customization : Available

After-sales Service : 12 Months

Warranty : 12 Months

Place of Origin : China

MOQ : 1 set

Payment Terms : LC, T/T

Contact Now

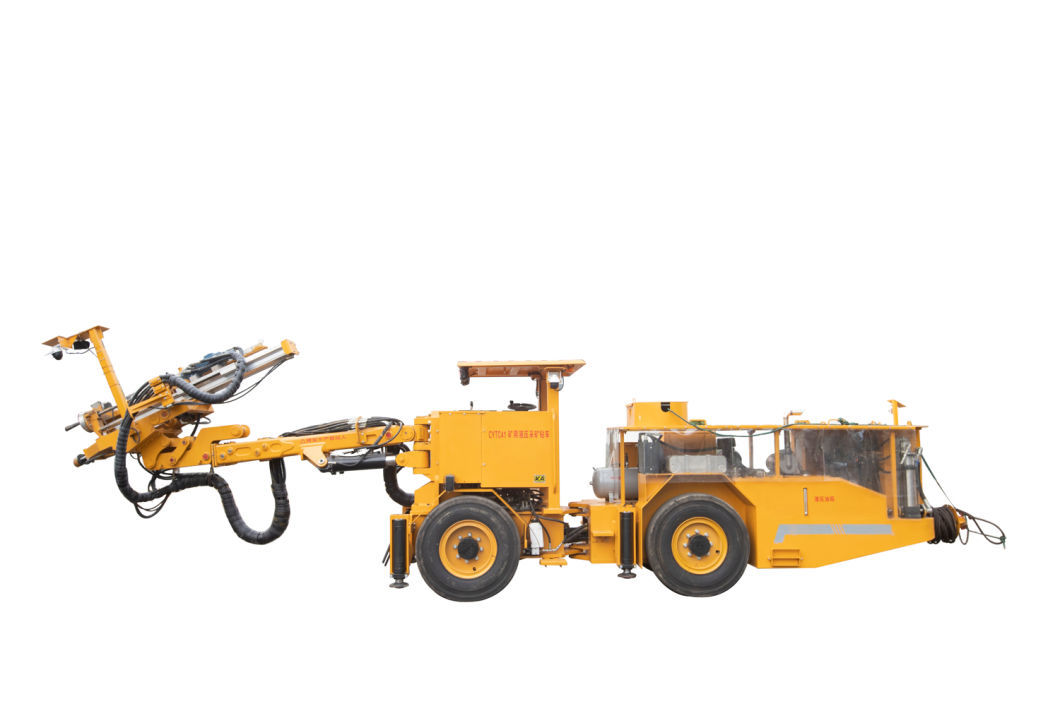

CYTB1/4 Mining Drilling and Blasting Rig

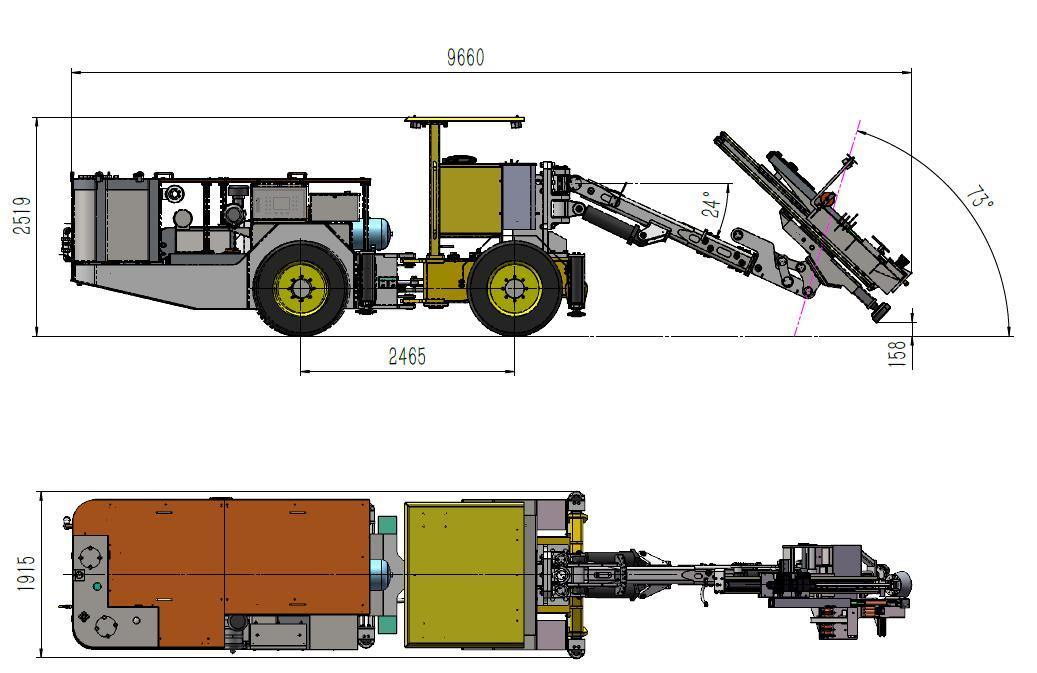

Dimensions and structure

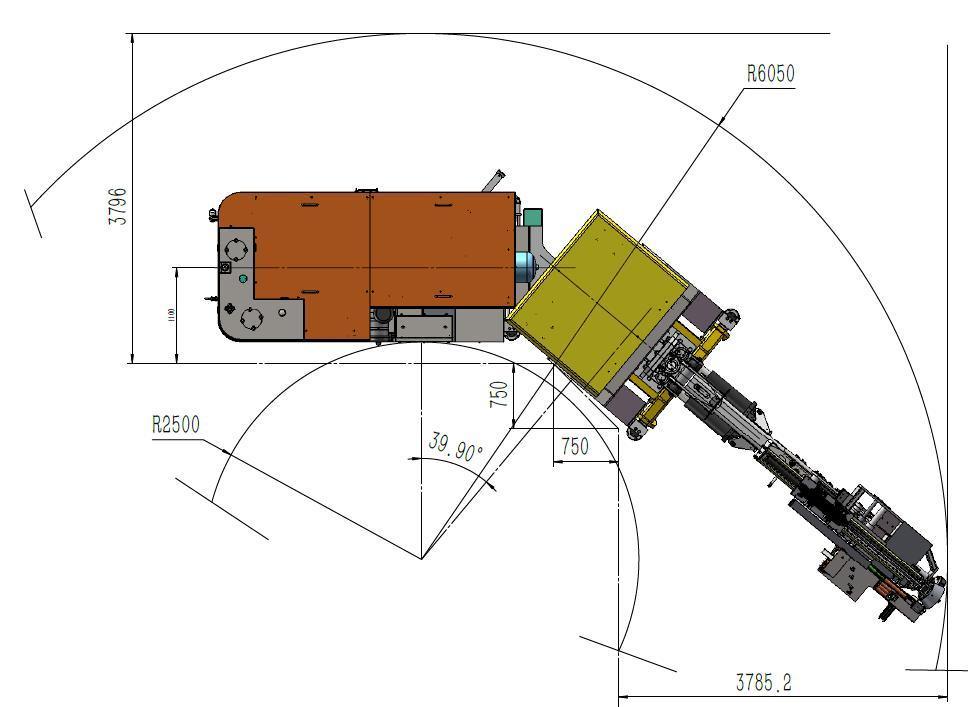

Turning radius

Boom swing angle

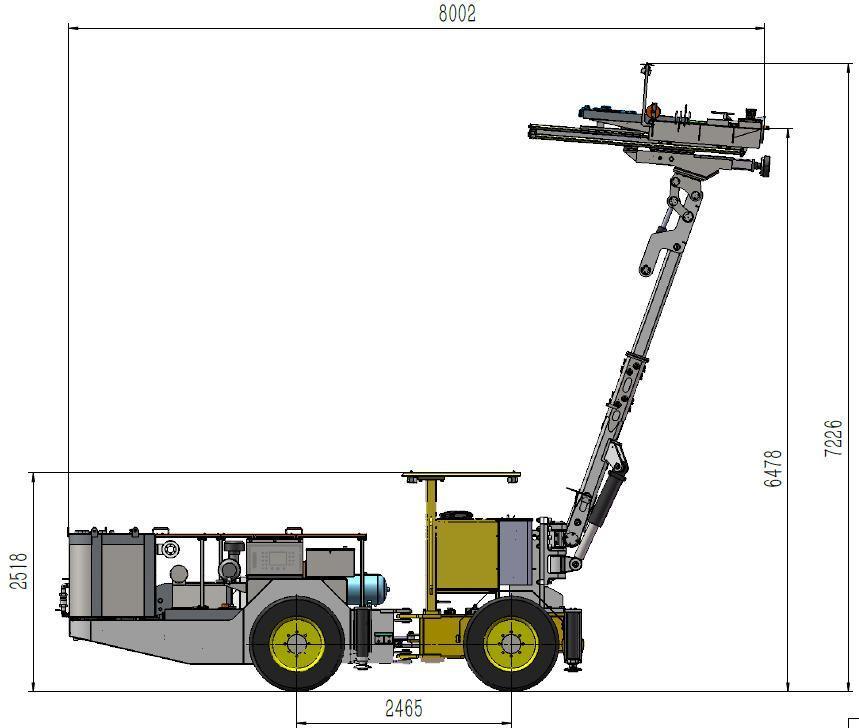

Maximum working height

Main configuration and technical parameters

Model			CYTB1/4
Item			Unit	Parameters
Parameters	Transportation size (L x H x W)		m	9.66×1.92×2.52
	Max.Working Scope (W×H)		m	6.9×6.4
	Min. Turning radius		m	Inner2.5; Outer 6.05
	Min. ground clearance		m	310
	Total mass		t	About 11
	Remote control system		-	3 camera + radar + remote controller (150m)
	Drill hole diameter		mm	45(43 drill head)
	Drill hole depth		m	≤1000
	Rod specification		-	R32×1525
	Explosives rolls magazine		-	3+1pcs
	Explosives rolls Diameter		m	32
	Prefabricated PVC explosives roll specs.		mm	40/36×2-600
Drilling boom system	Rock drilling propulsion type			cylinder
	Rock drilling propulsion stroke		mm	1100
	Propulsion power		kN	6~9
	Telescopic boom stroke		-	1250
	Supporting cylinder stroke		-	190
	Advancing drilling speed		m/min	≥800
	Drilling boom lifting angle		°	-24~+70
	Drilling boom swing angle		°	±50
Driving system	Chassis system		-	Engineering chassis,tire driving
	Driving type		-	Hydro-static 4-wheel drive
	Driving speed		km/h	Gear 1:7;Gear 2:12
	Gradeability		-	25%/14°
	Diesel engine power and rotating speed		-	88kW,2400rmp
	Approaching angle		°	15
	Departing angle		°	13
Rock drilling system	Model		-	YYG-8/400(W8)
	Diameter range		mm	32~51
	Impacting	Max. Impact power	kW	8
		Impacting rate	Hz	55~65
		Impacting pressure	MPa	11~15
		Impacting flow rate	L/min	55~65
	Rotation	Max. Rotation torque	N.m	401
		Max. Rotation speed	rpm	300
		Rotation motor pressure	MPa	17.5
		Rotation flow rate	L/min	30~48

Equipment features
1. It integrates the functions of drilling, placing explosives, and drawing out the blasting line.
2. Full diesel power, closed hydro-static drive engineering chassis, four-wheel drive, articulated steering.
3. Hydraulic wet double braking system, service brake for driving, closed spring brake for parking.
4. Remote wireless video remote control, through remote control to achieve drilling, placement of explosives and other work, high degree of automation.
5. Equipped with prefabricated PVC explosives pipe magazine, a single entry can complete the installation of four explosives rolls.
6. The drill arm support mechanism, the rock drill and the explosives roll installation push rod are switched in parallel, and the operation is accurate and reliable.
