Underground Single Boom Face Drilling Machine

Name: Underground Single Boom Face Drilling Machine
Brand: Jarlo
Price: 150000 USD

China Underground Single Boom Face Drilling Machine wholesale

Brand Name : Jarlo

Model Number : CYTJ-76

Certification : China National Mining Safety Certificate

Place of Origin : China

MOQ : 1 set

Price : 150000-160000 USD

Payment Terms : LC, T/T

Supply Ability : 1000 Set Per Year

Delivery Time : 45-60days

Packaging Details : Container loaded

Model NO. : CYTJ76

Condition : New

Motor : DC Motor

Drill Hole Diameter : >300mm

Drill Hole Depth : 3405-4015mm

Bit Type : Alloy Steel

Drilling Way : Rotary

Transport Package : in Bulk

Trademark : Jarlo

Origin : China

Customization : Available

After-sales Service : 12 Months

Warranty : 12 Months

Contact Now

1. Applicable Scenarios
CYTJ76 mining hydraulic excavation drilling vehicle is suitable for blasting drilling in underground mines, tunnels and underground workshops, especially for small-section excavation.

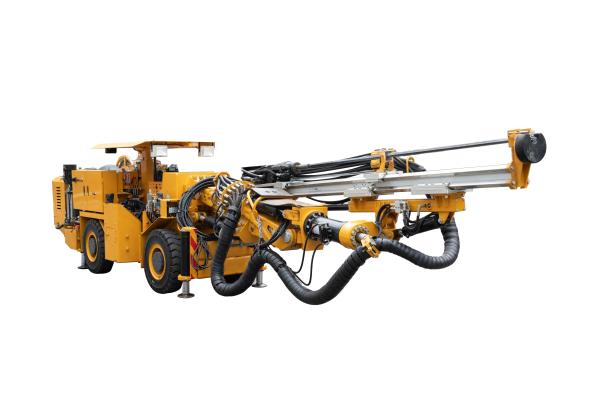

Underground Single Boom Face Drilling Machine

2. Technical features

The width of the vehicle body is only 1.45m, with a retractable safety roof. When the roof is at the lowest position, the height of the vehicle body is only 1.8m, and normal driving and operation can be carried out at the lowest height. The maximum working area is 18㎡ (maximum width is 4.5m, maximum height is 5.2m), the drilling diameter is 41-76mm, the overall structural design is reasonable, the strength is high, the adjustment and maintenance are simple and convenient, the equipment has high operating efficiency and good economy.
Due to its small size, it can smoothly pass through the small-section tunnels. CYTJ76 has obvious advantages in replacing manual operations: taking a 28-hand pneumatic drill as an example, its average drilling efficiency for rocks with F=10-12 is 0.35m/min. CYTJ76 is equipped with a hydraulic rock drill. With the same rock hardness, when drilling 45 holes, it can handle rocks with F=10-12 with an average efficiency of 2m/min, and the drilling speed is 5.7 times that of a 28-hand drill.
In terms of drilling, since the hydraulic system can keep the propulsion beam completely parallel, the drilling efficiency can reach 5-8 times that of the air-leg rock drill.

3. Parameters

Model				CYTJ76
Item			Unit	Parameter
Overall performance	Drill boom		Unit	1
	Applicable tunnel section		㎡	1.8×1.8～4.5×4.5
	Transport size	L	mm	9300±200
		W	mm	1240±50
		H(With roof)	mm	Highest:2450±100
		H(With roof)	mm	Lowest:1800±100
	Min. Turning radius		mm	Inner:≤2390
	Min. Turning radius		mm	Outer:≤4390
	Working state stable vehicle mode		—	Outrigger
	Min. Ground clearance		mm	≥220
	Working width in stable working state		mm	2150
	Machine weight		kg	8400
	Drilling diameter		mm	φ41-φ76
Drilling system	Type		—	Impact + rotation
	Model		—	HYD300
	Machine weight		kg	115
	Edge distance		mm	70
	Size(L×W× H)		mm	784×140×252
	Impact device and Rotating mechanism	Impact energy	J	250-300
		Impact frequency	Hz	30-50
		Impact power	kW	15
		Impact rated pressure	MPa	16-19
		Impact flow	L/min	55-65
		Rotation torque	N.m	100-300
		Rotation speed range	r/min	220-450
		Rotation working pressure	MPa	7-15
		Rotation working flow	L/min	40-70
Propeller	Propulsion mode		—	Oil cylinder-wire rope
	Drilling depth		mm	2760
	Maximum propulsion force		kN	≥18
	Propulsion drilling speed		mm/min	≥2150
	No-load propulsion speed		mm/min	≥15000
	Working pressure		MPa	≤11
Driving system	Travel mode		—	Wheeled (articulated)
	Driving speed	Fast gear	km/h	7±0.7
	Driving speed	Slow gear	km/h	3±0.3
	Rear axle swing angle		(°)	±6~±8
	Climbing ability		(°)	≥13(-13~+13°)
	Diesel engine	Rated power	kW	48
	Diesel engine	Rated speed	r/min	2200
Electric motor	Electric motor	Rated power	kW	45
Hydraulic oil pump	Oil pump (impact/positioning/rotation)	Rated voltage	V	380
		Rated current	A	84.4
		Starting current	A	≤450
		Rated pressure	MPa	21
		Maximum working pressure	MPa	23
Auxiliary working device	Air supply device	Working pressure	MPa	0.3
	Air supply device	Rated flow	L/min	350
	Water supply device (external water supply)	Working pressure	MPa	1.2
	Water supply device (external water supply)	Rated flow	L/min	70

Underground Single Boom Face Drilling Machine Images
